factory sell Ball Valve BV for controll air flow with charge pot
- group name
- Ball Valves
- Min Order
- 1 piece
- brand name
- Comforplanet Air Conditioner Parts Manufacturer
- model
- BV
- Nearest port for product export
- Ningbo, Shanghai, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal
- update time
- Wed, 27 Jul 2022 20:56:51 GMT
Paramtents
material Copepr
Size standard
accessories charge port
structure welded
Packging & Delivery
-
Min Order1 piece
Briefing

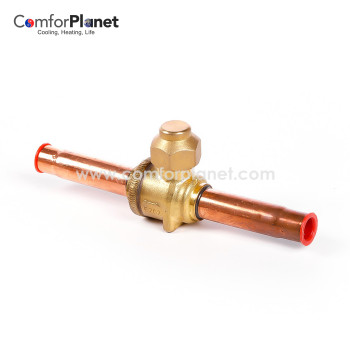

The Ball Valve is a manually regulated shut-off valve, which is applicable to two-direction flow.
Detailed
Ball Valve,BV
1.The ball valve No pressure drop in flow.
2.Only turn 1/4 circle to make valve full open or full close.
3.Turning stop for full open or full close.
4.Two-direction flow is available.
5.Argon arc welded structure.
6.Explosion-proof valve stem design.
7.Modified PTFE sealing.
8.Inside liquid accumulation is avoided.
9.Could be mounted on the control panel.
10.Two types of BV Ball Valve are available: With and without the charging port.
11.The part number which with "Z" has the charging port .
PRODUCT DESCRIPTION
Type | Connection Size(in) |
Allowed Max Leaking Capacity (g/year) |
Max working pressure | 1(kw) Rated power of liquid |
Kv value (m³/h) |
||
R22 |
R134a
|
R502
|
|||||
BV-04(Z) | 1/4'' | 2.8 | 4.5 | 11 | 10.1 | 7.3 | 0.8 |
BV-06(Z) | 3/8'' | 2.8 | 4.5 | 22 | 20.2 | 14.6 | 3.8 |
BV-08(Z) | 1/2'' | 2.8 | 4.5 | 105 | 96 | 70 | 5.6 |
BV-10(Z) | 5/8'' | 2.8 | 4.5 | 143 | 132 | 95 | 10.1 |
BV-12(Z) | 3/4'' | 2.8 | 4.5 | 241 | 221 | 160 | 20.42 |
BV-14(Z) | 7/8'' | 2.8 | 4.5 | 358 | 329 | 238 | 28.17 |
BV-18(Z) | 1-1/8'' | 2.8 | 4.5 | 633 | 582 | 421 | 51.95 |
BV-22(Z) | 1-3/8'' | 2.8 | 4.5 | 756 | 696 | 503 | 80.89 |
BV-26(Z) | 1-5/8'' | 2.8 | 4.5 | 1293 | 1190 | 860 | 196 |
BV-34(Z) | 2-1/8'' | 2.8 | 4.5 | 1348 | 1240 | 1156 | 248 |
BV-42(Z) | 2-5/8'' |
2.8
|
4.5 | 1470 |
1320
|
1235
|
252
|
BV-50(Z) | 3-1/8'' |
2.8
|
4.5 | 1532 |
1480
|
1345
|
279
|
