HVAC Wholesaler CFTF Tangential Fan used in air conditioning and heating applications

group name: Tangential Fans

Min Order: 1 piece

brand name: Comforplanet Air Conditioner Parts Manufacturer

model: CFTF

Nearest port for product export: Ningbo, Shanghai, Qingdao

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal

update time: Wed, 27 Apr 2022 14:04:08 GMT

contact supplier

Paramtents

Package box
port Ningbo port
Min. order 50

Packging & Delivery

Min Order1 piece

Briefing

Fan diameter: 60 mm
Fan length: 300 mm
Motor position: right
Power Supply: 220 / 230 V - 50 Hz
Flow rate: 250 mc/h

Detailed

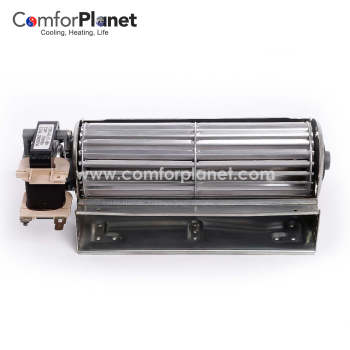

Tangential Fan

Tangential Fans provide wide, uniform air

delivery of high capacity, widely used in

air curtains, air conditioning and heating

applications.

Impeller: aluminum construction.

Bearing: sleeve bearing or ball bearing.

Working Temp.: 0 to +60 °C.

Insulation class: class B, class F.

Certificate: CE.

Lead wire: cable or terminal.

PRODUCT DESCRIPTION

Model	Voltage	Frequency	Current	Input Power	Speed	Max. Air Volume	Noise
Model	V	Hz	A	W	RPM	m³/h	dB(A)
CFTF-30.90	230	50	0.06	8.5	2800	40	35
CFTF-30.120	230	50	0.1	15	2800	55	36
CFTF-30.240	230	50	0.11	16	2800	100	37
CFTF-30.300	230	50	0.10	16	2800	120	39
CFTF-40.120	230	50	0.08	13	2750	90	35
CFTF-40.180	230	50	0.13	21	2700	140	36

FAQ

Q: How about the Delivery time?

A: About 20-35 days.

Q: What kind of payments does jenor support?

A: T/T,L/C,D/Pare accepted or other methods negotiable.

Q: Can you produce according to customers' design?

A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.

We can produce the product under your brand name, also the size can be changed as your requirement.
