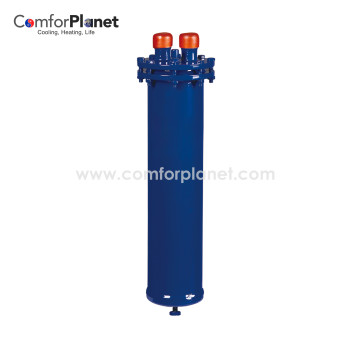

Wholesale CW20/CW30 Series Detachable Oil Separator for Refrigeration
- group name
- Oil Separators
- Min Order
- 50 piece
- brand name
- Comforplanet Air Conditioner Parts Manufacturer
- model
- CW20/CW303 Series
- Nearest port for product export
- Ningbo, Shanghai, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal
- update time
- Mon, 18 Apr 2022 10:13:03 GMT
Paramtents
color blue
port Ningbo
package carton
Packging & Delivery
-
Min Order50 piece
Briefing
Diameter less than 1-1/8", copper pipe with no iron bushing flange connection.
Detailed
CW20/CW30 Series
Detachable Oil SeparatorRemarks:
① Diameter less than 1-1/8", copper pipe with no
iron bushing flange connection.
② The diameter greater than or equal to 1-1/8",
copper pipe and flange to increase iron sleeve
connection.
PRODUCT DESCRIPTION
|
Model
|
In the refrigerating capacity of the evaporation temperature
|
ODF (in) | Oil Return SAE(in) | Dimensions (mm) | Precharge qty (mL) | Cubage (L) | Remarks | |||||||||
|
R404A/R507
|
R134A
|
R22/R407C | ||||||||||||||
|
-40℃
|
+5℃
|
-40℃
|
+5℃ | -40℃ | +5℃ | φD | L | h | H | M | ||||||
|
CW20-5301
|
5.31
|
7.0
|
3.2
|
6.2 | 5.3 | 7.1 | 1/2 | 1/4 | 102 | 50 | 243 | 275 | M10 | 400mL | 1.70L | ① |
CW20-5302 | 14.2 | 19.3 | 11.4 | 15.8 | 15.8 | 19.5 | 5/8 | 1/4 | 102 | 50 | 335 | 370 | M10 | 400mL | 2.38L | ① |
CW20-5303 | 22.8 | 29.2 | 16.7 | 22.4 | 24.8 | 28.3 | 7/8 | 1/4 | 102 | 50 | 415 | 455 | M10 | 400mL | 2.98L | ① |
CW20-5304 | 30 | 37.6 | 22.4 | 29.9 | 31.8 | 37.2 | 1-1/8 | 1/4 | 102 | 50 | 440 | 482 | M10 | 400mL | 3.16L | ② |
CW20-5305 | 36.7 | 49 | 28.1 | 40.4 | 40.5 | 47.8 | 1-3/8 | 1/4 | 102 | 50 | 478 | 520 | M10 | 400mL | 3.44L | ② |
CW30-5301 | 5.31 | 7 | 3.2 | 6.5 | 5.3 | 7.1 | 1/2 | 1/4 | 102 | 50 | 243 | 275 | M10 | 400mL | 1.70L | ② |
CW30-5302 | 14.2 | 19.3 | 11.4 | 15.8 | 15.8 | 19.5 | 5/8 | 3/8 | 102 | 50 | 335 | 370 | M10 | 400mL | 2.38L | ① |
CW30-5303 | 22.8 | 29.2 | 16.7 | 22.4 | 24.8 | 28.3 | 7/8 | 3/8 | 102 | 50 | 415 | 455 | M10 | 400mL | 2.98L | ① |
CW30-5304 | 30 | 37.6 | 22.4 | 29.9 | 31.8 | 37.2 | 1-1/8 | 3/8 | 102 | 50 | 440 | 482 | M10 | 400mL | 3.16L | ① |
CW30-5305 | 36.7 | 49 | 28.1 | 40.4 | 40.5 | 47.8 | 1-3/8 | 3/8 | 102 | 50 | 478 | 520 | M10 | 400mL | 3.44L | ① |
FAQ
Q: How about the Delivery time?
A: About 20-35 days.
Q: What kind of payments does jenor support?
A: T/T,L/C,D/Pare accepted or other methods negotiable.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We can produce the product under your brand name, also the size can be changed as your requirement.
