Wholesale Liquid Receiver hvac|CC Series is designed for refrigerant storage during normal operation and system pump down.
- group name
- Suction Line Filter Driers
- Min Order
- 100 piece
- brand name
- Comforplanet Air Conditioner Parts Manufacturer
- model
- CA
- Nearest port for product export
- Ningbo, Shanghai, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal
- update time
- Thu, 24 Mar 2022 11:33:37 GMT
Paramtents
Color Blue、Black
Size Standard
application refrigerant storage
Packging & Delivery
-
Min Order100 piece
Briefing

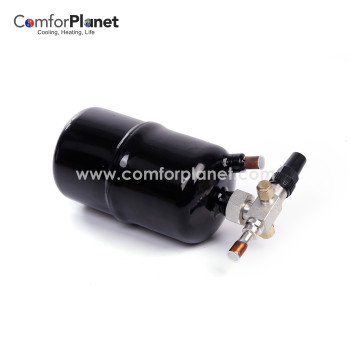

The CC series liquid receiver is designed for refrigerant storage during normal operation and system pump down.
Detailed
CC Series
Liquid receiver hvac
The CC series liquid receiver is designed for
refrigerant storage during normal operation and
system pump down..
Feature
Max. working pressure up to 35bar.
Firm powder paint exterior coating for
high-resistant from corrosion.
Available with rotalock valves.
PTFE gasket seal for valve.
Model | Connection（inch） | Filter Area |
Volume | ||||
IN | OUT | D | h | H | d |
L | |
CC30-039110 | 3/8ODF | 3/8ODF | 91 | 33 | 223 | 63.5 |
1.0 |
CC30-149110 | 1/2 ODF | 1/2 ODF | 91 | 35 | 225 | 63.5 | 1.0 |
CC30-0312021 | 3/8 ODF | 3/8 ODF | 120 | 35 | 253 | 76 | 2.1 |
CC30-0412021 | 1/2 ODF | 1/2 ODF | 120 | 35 | 255 | 76 | 2.1 |
CC30-0415032 | 1/2 ODF | 1/2 ODF | 150 | 35 | 260 | 76 | 3.2 |
CC30-0515032 | 5/8 ODF | 5/8 ODF | 150 | 40 | 320 | 76 | 3.2 |
CC30-0515040 | 5/8 ODF | 5/8 ODF | 150 | 40 | 290 | 76 | 4.0 |
CC30-0518055 | 5/8 ODF | 5/8 ODF | 180 | 40 | 297 | 76 | 5.5 |
CC30-0718055 | 7/8 ODF | 7/8 ODF | 180 | 47 | 350 | 76 | 5.5 |
CC30-0518070 | 5/8 ODF | 5/8 ODF | 180 | 40 | 357 | 76 | 7.0 |
CC30-0718070 | 7/8 ODF | 7/8 ODF | 180 | 47 | 230 | 76 | 7.0 |
CC31-039110 | 3/8 ODF | 3/8 ODF | 91 | 40 | 260 | 63.5 | 1.0 |
CC31-0312021 | 3/8 ODF | 3/8 ODF | 120 | 40 | 260 | 76 | 2.1 |
CC31-0415032 | 1/2 ODF | 1/2 ODF | 150 | 40 | 260 | 76 | 3.2 |
CC31-4315032 | 1/2 ODF | 3/8 ODF | 150 | 40 | 260 | 76 | 3.2 |
CC31-0415040 | 1/2 ODF | 1/2 ODF | 150 | 40 | 320 | 76 | 4.0 |
CC31-4315040 | 1/2 ODF | 3/8 ODF | 150 | 40 | 320 | 76 | 4.0 |
CC31-0418055 | 1/2 ODF | 1/2 ODF | 180 | 40 | 290 | 76 | 5.5 |
CC31-0418062 | 1/2 ODF | 1/2 ODF | 180 | 40 | 318 | 76 | 6.2 |
CC31-0418070 | 1/2 ODF | 1/2 ODF | 180 | 40 | 350 | 76 | 7.0 |
CC31-5418070 | 5/8 ODF | 1/2 ODF | 180 | 40 | 350 | 76 | 7.0 |
CC31-0518070 | 5/8 ODF | 5/8 ODF | 220 | 40 | 350 | 76 | 7.0 |
CC31-0522010 | 5/8 ODF | 5/8 ODF | 220 | 40 | 350 | 89 | 10.0 |
CC31-0522012 | 5/8 ODF | 5/8 ODF | 220 | 40 | 400 | 89 | 12.0 |
CC31-6522012 | 3/4 ODF | 5/8 ODF | 220 | 40 | 400 | 89 | 12.0 |
CC31-6522014 | 3/4 ODF | 5/8 ODF | 220 | 40 | 450 | 89 | 14.0 |
CC31-0722014 | 7/8 ODF | 7/8 ODF | 220 | 45 | 455 | 89 | 14.0 |
CC31-0922014 | 1-1/8 ODF | 1-1/8 ODF | 220 | 35 | 463 | 89 | 14.0 |
Specification-Horizontal
Model | Connection（inch） | Filter Area |
Volume | |||||
IN | OUT | D | h | H | d |
E | L | |
CC381-0715912 | 7/8 ODF | 7/8 ODF | 670 | 450 | 120 | 159 |
110 | 12 |
CC381-0515914 | 5/8 ODF | 5/8 ODF | 800 | 520 | 120 | 159 | 110 | 14.3 |
CC381-0715914A | 7/8 ODF | 7/8 ODF | 800 | 520 | 220 | 159 | 110 | 14.3 |
CC381-0715918A | 7/8 ODF | 7/8 ODF | 1000 | 760 | 220 | 159 | 120 | 18 |
CC381-0521923A | 5/8 ODF | 5/8 ODF | 700 | 460 | 220 | 219 | 140 | 23.1 |
CC381-0721923A | 7/8 ODF | 7/8 ODF | 800 | 530 | 220 | 219 | 150 | 26.7 |
CC381-0721930A | 7/8 ODF | 7/8 ODF | 900 | 550 | 220 | 219 | 150 | 30.0 |
CC381-0721933A | 7/8 ODF | 7/8 ODF | 1000 | 650 | 220 | 219 | 150 | 33.4 |
CC381-0912933A | 1-1/8 ODF | 1-1/8 ODF | 1000 | 650 | 220 | 219 | 150 | 33.4 |
CC381-0727340A | 7/8 ODF | 7/8 ODF | 800 | 500 | 220 | 273 | 160 | 40.0 |
CC381-0927340A | 1-1/8 ODF | 1-1/8 ODF | 800 | 500 | 220 | 273 | 160 | 40.0 |
CC381-0727345A | 7/8 ODF | 7/8 ODF | 900 | 600 | 220 | 273 | 160 | 45.0 |
CC381-0927345A | 1-1/8 ODF | 1-1/8 ODF | 900 | 600 | 220 | 273 | 160 | 45.0 |
CC381-1127345A | 1-3/8 ODF | 1-3/8 ODF | 900 | 600 | 220 | 273 | 160 | 45.0 |
CC381-0927350A | 1-1/8 ODF | 1-1/8 ODF | 1000 | 650 | 220 | 273 | 160 | 50.4 |
CC381-1127350A | 1-3/8 ODF | 1-3/8 ODF | 1000 | 650 | 220 | 273 | 160 | 50.4 |
CC381-0927355A | 1-1/8 ODF | 1-1/8 ODF | 1100 | 700 | 220 | 273 | 160 | 54.7 |
CC381-1127355A | 1-3/8 ODF | 1-3/8 ODF | 1100 | 700 | 220 | 273 | 160 | 54.7 |
CC3815-0721920B | 1-1/4-12UU | 7/8 ODF | 664 | 400 | 180 | 219 | 111 | 20.8 |
CC3810-0721930B | 1-1/4-12UU | 7/8 ODF | 944 | 600 | 180 | 219 | 214 | 30.2 |
CC3810-0721940B | 1-1/4-12UU | 7/8 ODF | 1214 | 740 | 180 | 219 | 349 | 39.3 |
PRODUCT DESCRIPTION
FAQ
Q: How about the Delivery time?
A: About 20-35 days.
Q: What kind of payments does jenor support?
A: T/T,L/C,D/Pare accepted or other methods negotiable.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We can produce the product under your brand name, also the size can be changed as your requirement.
