wholesale Replaceable Core Shell Filter Drier CA Series for iquid and suction line of large commercial air conditioning and refrigeration systems.
- group name
- Liquid Line Filter Driers
- Min Order
- 100 piece
- brand name
- Comforplanet Air Conditioner Parts Manufacturer
- model
- CA
- Nearest port for product export
- Ningbo, Shanghai, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal
- update time
- Tue, 01 Mar 2022 13:43:34 GMT
Paramtents
Color Blue
Size Standard
application filtration
Packging & Delivery
-
Min Order100 piece
Briefing
The CA series replaceable core shell is for use in large commercial air conditioning and refrigeration systems.
Detailed

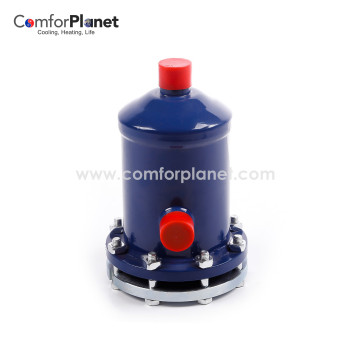

Replaceable Core Shell,CA Series
The CA series replaceable core shell is for use in
both liquid and suction line of large commercial
air conditioning and refrigeration systems.
The shell allows replacement of 48 series
cores for the removal of moisture, acid and
foreign contaminant.
Model | Connection (inch) | Nominal Flow Capacity(kw) Pressure Drop 0.014Mpa |
Dimension (mm)
|
Q'TY of Core | ||||||||
|
A
|
B
|
H | L | |||||||||
Copper | Iron | R22 |
R123A | R22 | R404A/R507 | R502 | ||||||
CA-485 | 5/8 | / | 52.8 | 66.9 | 73.8 | 49.0 | 45.8 |
26
|
22
|
149 | 227 | 1 |
CA-487 | 7/8 | / | 97.6 | 123.2 | 132.8 | 88.6 | 84.8 | 27 | 25 | 150 | 228 | 1 |
CA-489 | 1-1/8 | / | 140.2 | 168.6 | 187.0 | 124.2 | 120.0 | 27 | 25 | 150 | 228 | 1 |
CA-4811 | 1-3/8 | / | 160.2 | 196.8 | 214.6 | 140.2 | 138.2 | 32 | 28 | 155 | 232 | 1 |
CA-4813 | 1-5/8 | / | 224.2 | 274.6 | 298.0 | 198.2 | 194.6 | 32 | 28 | 155 | 232 | 1 |
CA-4817 | 2-1/8 | / | 253.3 | 310.2 | 332.2 | 235.2 | 211.2 | 39 | 32 | 161 | 239 | 1 |
CA-4821G | / | 2-5/8 | 274.6 | 335.4 | 348.6 | 260.5 | 232.3 | 54 | 50 | 152 | 245 | 1 |
CA-4824G | / | 3 | 302.8 | 362.6 | 373.2 | 288.6 | 260.5 | 56 | 50 | 145 | 244 | 1 |
CA-4825G | / | 3-1/8 | 345.2 | 386.3 | 394.4 | 302.2 | 278.0 | 56 | 50 | 144 | 243 | 1 |
CA-967 | 7/8 | / | 109.4 | 130.4 | 144.2 | 96.8 | 91.2 | 27 | 25 | 295 | 372 | 2 |
CA-969 | 1-1/8 | / | 165.4 | 205.6 | 221.8 | 148.6 | 138.6 | 27 | 25 | 295 | 372 | 2 |
etc | ||||||||||||
Feature
Compatible with all CFC, HCFC and HFC refrigerants.
Max. working pressure up to 3.5Mpa.
Firm powder paint exterior coating for high-resistant
from corrosion.
Available with solder (pure copper) and flare
connections.
100 mesh outlet screen.
ODF solder fittings 5/8" to 3-1/8".
Liquid pipe application can choose 48 type drying
filter core.
PRODUCT DESCRIPTION
FAQ
Q: How about the Delivery time?
A: About 20-35 days.
Q: What kind of payments does jenor support?
A: T/T,L/C,D/Pare accepted or other methods negotiable.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We can produce the product under your brand name, also the size can be changed as your requirement.
