air conditioner Contactor HVAC electrical magnetic Condenser Contactor Motor Definite Purpose AC 2 pole Contactor
- group name
- Contactors
- Min Order
- 1 piece
- brand name
- Comforplanet Air Conditioner Parts Manufacturer
- model
- Contactor
- Nearest port for product export
- Ningbo, Shanghai, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal
- update time
- Fri, 08 Apr 2022 18:23:08 GMT
Paramtents
Name air conditioner Contactor
Color black
Place of Origin Zhejiang, China
packing Carton
Packging & Delivery
-
Min Order1 piece
Briefing
Definite purpose contactors with TUV, UL, CE and RoHS approvals.
Detailed

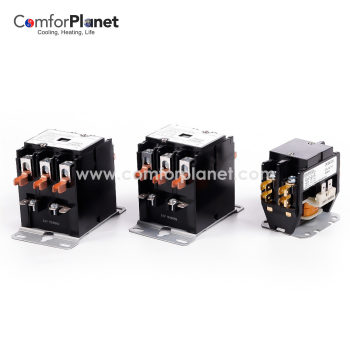

air conditioner Contactor
Definite purpose contactors with TUV, UL, CE and
RoHS approvals.
Initial dielectric strength
Between contactors & coils: 2200 VAC
Between poles: 2200 VAC
Between open contacts: 2200 VAC
nsulation system 130°C class B
Temperature range:40°C to +65°C (-40°F to +150°F)
PRODUCT DESCRIPTION
Electrical Rating for 1 & 2 Pole (20-40 FLA)
Full Load
Amps | Resistive Amps
@ 600 VAC | Locked Rotor Amps
@ 240/277 VAC | Locked Rotor Amps
@ 480 VAC | Locked Rotor Amps
@ 600 VAC | Max. Horsepower | ||
Voltage | Single Phase | Three Phase | |||||
1 Pole Contactor (20-40 FLA) & 2 Pole Contactor (20-40 FLA) | |||||||
20 |
30
|
120 | 100 | 80 |
120/240
|
1/2
|
/
|
25 |
35
|
150 | 125 | 100 |
120/240
|
1/2
|
/
|
30 |
40
|
150 | 125 | 100 |
120/240
|
1/2
|
/
|
40 |
50
|
240 | 200 | 160 |
120/240
|
1/2
|
/
|
Electrical Rating for 3 & 4 Pole (20-40 FLA)
Full Load
Amps | Resistive Amps
@ 600 VAC | Locked Rotor Amps
@ 240/277 VAC | Locked Rotor Amps
@ 480 VAC | Locked Rotor Amps
@ 600 VAC | Max. Horsepower | ||
|
Voltage
|
Single Phase
|
Three Phase
|
|||||
3 Pole Contactor (20-40 FLA) | |||||||
20 | 30 | 120 | 100 | 80 | 120
240/277
480/600 | 1.5 3
- | - 7.5 7.5 |
25 | 35 | 150 | 125 | 100 | 120
240/277
480
600 | 2 5 -
- | - 10 15 20 |
30 | 40 |
180
|
150 | 120 |
120
240/277
480
600
|
2 5 - -
|
- 10 15 20
|
40 | 50 |
240
|
200 | 160 |
120
240/277
480
600
|
7.5
-
-
|
- 10 15 20
|
4 Pole Contactor (20-40 FLA) |
|||||||
30 | 40 | 180 | 150 | 120 | 120
240/277
480/600 | 2 5 - | -
10
15 |
40 | 50 | 240 | 200 | 160 | 120
240/277
480/600 | 3 7.5 - | -
10
20 |
Electrical Rating for 3 Pole (50-90 FLA)
Full Load
Amps | Resistive Amps @ 600 VAC |
Locked Rotor Amps @ 240/277 VAC
|
Locked Rotor Amps @ 480 VAC | Locked Rotor Amps @ 600 VAC |
Max. Horsepower
|
||
|
Voltage
|
Single Phase
|
Three Phase
|
|||||
50 | 65 | 300 | 250 | 200 | 120
240/277
480/600 | 3
10
- | -
15
25 |
60 | 75 | 360 | 300 | 240 | 120
240/277
480/600 | 5
10
- | -
25
30 |
75 | 93 |
450
|
375 | 300 |
120
240/277
480/600
|
-
15
-
|
-
25
40
|
90 | 120 | 540 | 450 | 360 | 120
240/277
480/600 | -
20
- | -
30
50 |
FAQ
Q: How about the Delivery time?
A: About 20-35 days.
Q: What kind of payments does jenor support?
A: T/T,L/C,D/Pare accepted or other methods negotiable.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us.
We can produce the product under your brand name, also the size can be changed as your requirement.
