Wholesale air conditioner Expansion Valve Thermostatic Expansion Valve Brass valve T2 copper outputs exchangeable orifice for industrial refrigeration plants high capacity, split, packaged
- group name
- Thermostatic Expansion Valves
- Min Order
- 1 piece
- brand name
- Comforplanet Air Conditioner Parts Manufacturer
- model
- T2
- Nearest port for product export
- Ningbo, Shanghai, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal
- update time
- Wed, 16 Feb 2022 17:05:15 GMT
Paramtents
Product name Thermostatic Expansion Valve
Color Gold
Material brass
Refrigerant R22 R407C R134A R404A R507
Usage hvac
Packing Carton box or with pallets
Packging & Delivery
-
Min Order1 piece
Briefing
Used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants
Detailed

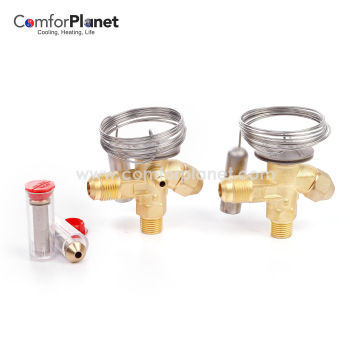

Thermostatic Expansion Valve
air conditioner Expansion Valve
T 2 and TE 2 thermostatic expansion valves have an interchangeable orifice
assembly.
The orifice assembly is suitable for all versions of valve body and
refrigerants and in all evaporating temperature ranges. The charge in
the thermostatic element depends on the refrigerant and evaporating
temperature range. The valves are available with internal (T2) or external
(TE2) pressure equalization.
Refrigerant | Valve
type |
Pressure
equalization
|
Capillary
tube | Connection | |||||||||
Inlet × outlet | Range N -40 to +10°C | Range NM -40 to -5°C |
Range NL -40 to -15°C | Range B -60 to -25°C |
|||||||||
mm | in. × in. | mm x mm | Without MOP | With MOP | With MOP | With MOP | Without MOP | With MOP | |||||
R22/R407C | TX 2 | Int. | 1.5 | 3/8×1/2 | 10×12 | 068Z3206 | 068Z3208 | 068Z3224 | 068Z3226 | 068Z3207 | 068Z3228 | ||
TEX 2 | Ext. | 1.5 | 3/8×1/2 | 10×12 | 068Z3209 | 068Z3211 | 068Z3225 | 068Z3227 | 068Z3210 | 068Z3229 | |||
R407C | TZ 2 | Int. | 1.5 | 3/8×1/2 | 10×12 | 068Z3496 | 068Z3516 | ||||||
TEZ 2 | Ext. | 1.5 | 3/8×1/2 | 10×12 | 068Z3501 | 068Z3517 | |||||||
R134A | TN 2 |
Int.
|
1.5 | 3/8×1/2 | 10×12 | 068Z3346 | 068Z3347 | 068Z3393 |
068Z3369
|
||||
TEN 2 |
Ext.
|
1.5 | 3/8×1/2 | 10×12 | 068Z3348 | 068Z3349 | 068Z3392 |
068Z3370
|
|||||
R404A/R507 | TS 2 | Int. | 1.5 | 3/8×1/2 | 10×12 | 068Z3400 | 068Z3402 | 068Z3406 | 068Z3408 | 068Z3401 | 068Z3410 | ||
TES 2 | Ext. | 1.5 | 3/8×1/2 | 10×12 | 068Z3403 | 068Z3405 | 068Z3407 | 068Z3409 | 068Z3404 | 068Z3411 | |||
